Where is Kevlar used in aircraft?

Where is Kevlar used in aircraft?

Many jet engine manufacturers add a protective layer of Kevlar® fabric inside the engine cowl to help catch errant fan blades or massive broken parts flung outward by the engine’s centrifugal force, thus potentially preventing them from damaging the wing or the cabin.

Why Kevlar is used in aircraft as reinforcement material?

Kevlar is an aramid fiber used as a reinforcement in polymeric organic matrix composites and is gaining increased applications due to its outstanding properties such as high tensile strength, lightweight, stiffness, and thermal stability [22].

What are the types of fibers used in aircraft construction?

Composite materials have played a major part in weight reduction, and today there are three main types in use: carbon fiber-, glass-, and aramid- reinforced epoxy.; there are others, such as boron-reinforced (itself a composite formed on a tungsten core).

What is DuPont Kevlar?

Created by Stephanie Kwolek, DuPont™ Kevlar® is a heat-resistant para-aramid synthetic fiber with a molecular structure of many inter-chain bonds that make Kevlar® incredibly strong.

What are the parts of an aircraft that uses composite materials?

Composite materials have been used in aerospace in applications such as engine blades, brackets, interiors, nacelles, propellers/rotors, single aisle wings, wide body wings.

Which composite material is used in aircraft?

Fibreglass is the most common composite material, and consists of glass fibres embedded in a resin matrix. Fibreglass was first used widely in the 1950s for boats and automobiles. Fibreglass was first used in the Boeing 707 passenger jet in the 1950s, where it comprised about two percent of the structure.

What is an individual fiber called in aviation?

An individual fiber is called a filament. The word strand is also used to identify an individual glass fiber. Bundles of filaments are identified as tows, yarns, or rovings. Fiberglass yarns are twisted, while Kevlar® yarns are not.

What are three composite materials that aircraft are built from?

Three types are used most often to build custom aircraft. These are fiberglass, carbon fiber, and Kevlar. Glass fiber or fiberglass is the most widely used reinforcing material.

What is aircraft composite structure?

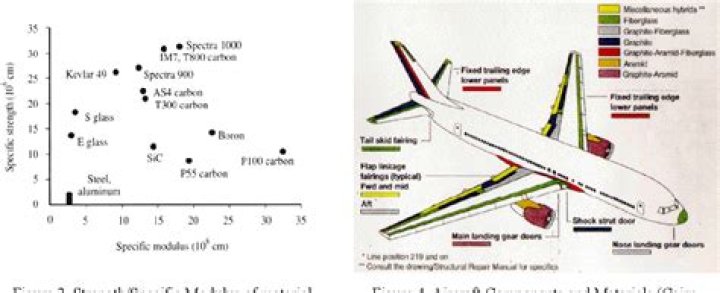

Composite materials consist of a combination of materials that are mixed together to achieve specific structural properties. Fibrous materials are not new; wood is the most common fibrous structural material known to man. Applications of composites on aircraft include: Fairings. Flight control surfaces.

Why use Kevlar for aircraft structures?

Kevlar is the ideal solution for light weight, strength, and the crucial stability demanded for aircraft structures. Our expertise in delivering high performance fabrics for the Aerospace Industry is derived from over 40 years of experience weaving Kevlar and other high tenacity yarns, making BGF the premier supplier of aramid fabrics in the world.

What is the molecular structure of Kevlar?

Structure and properties Molecular structure of Kevlar: bold represents a monomer unit, dashed lines indicate hydrogen bonds. When Kevlar is spun, the resulting fiber has a tensile strength of about 3,620 MPa, and a relative density of 1.44. The polymer owes its high strength to the many inter-chain bonds.

What is the strongest material used in aircraft construction?

Kevlar 149, the strongest fiber and most crystalline in structure, is an alternative in certain parts of aircraft construction. The wing leading edge is one application, Kevlar being less prone than carbon or glass fiber to break in bird collisions.

What are the advantages and disadvantages of Kevlar?

It has high tensile strength, lightweight, inert on some conditions, stiff, and resilient. However, Kevlar’s has poor compressive strength, workability and is overly stiff for some applications. Another disadvantage is its cost, though it was shown to belong to a middle ranged material relative to carbon fiber and Boron.
