What is the OSHA regulations for stairs?
By James White
What is the OSHA regulations for stairs?

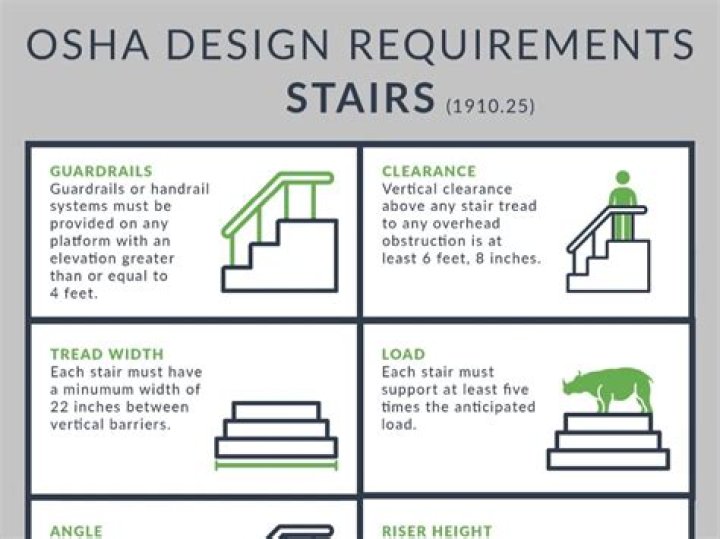

Riser height shall be from 6 to 7.5 inches (15.24 to 19.05 cm), stair width a minimum of 22 inches (55.88 cm) between vertical barriers, tread depth a minimum of 12±2 inches (30.48±5.08 cm), and tread nosing shall be straight leading edges. Stair landings shall be at least 20 inches (50.8 cm) in depth.
How high can a platform be without a step OSHA?
Vertical clearance above any stair tread to any overhead obstruction is at least 6 feet, 8 inches (203 cm), as measured from the leading edge of the tread.
When stairways have two open sides then stair rails need to be used on at least one side?
Standard railings shall be provided on the open sides of all exposed stairways and stair platforms. Handrails shall be provided on at least one side of closed stairways preferably on the right side descending.
Does OSHA require stair landings?
Both OSHA and IBC require landings at the top and bottom of the stairs, although IBC landings are larger, typically 4′ square. IBC also requires an intermediate landing on stairwells for stairwells over 12′ high, as well as handrail extensions at the bottom landing.
What is the minimum tread depth for stairs?
11″
A stair tread should be a minimum of 11″ deep for stairs used as a means of egress under the 2018 IBC building code. A stair tread should be a minimum 9.5″ deep for stairs used as equipment access under the OSHA standards for stairways.
What is the building regulations for stairs?
The following rules must be met: The individual rise must be between 150mm and 220mm. The individual going must be between 220mm and 300mm. The Pitch of the stair cannot be greater than 42 degrees.
How steep can stairs be OSHA?
50 to 70 degrees
Osha ships ladder standards 1910.25(e)(1) Are installed at a slope of 50 to 70 degrees from the horizontal; 1910.25(e)(2) Have open risers with a vertical rise between tread surfaces of 6.5 to 12 inches (17 to 30 cm); 1910.25(e)(3) Have minimum tread depth of 4 inches (10 cm); and.
What is a commonly cited hazard for stairways and/or ladders?
Top 10 Most Frequently Cited OSHA Violations in 2020
| Type | Number of Violations |
|---|---|
| 2. Hazard Communication | 3,199 |
| 3. Respiratory Protection | 2,649 |
| 4. Scaffolding | 2,538 |
| 5. Ladders | 2,129 |
What is the maximum gap between handrails?
Based on the information that you have provided, a maximum opening of four inches between the two guardrails would ensure compliance with 29 CFR 1910.23.
How much should a stair tread overhang?
Nosing Requirements The nosing on treads, believe it or not, has a code minimum and maximum of how far the nosing projects over the next stair. Nosings are required to overhang a minimum of ¾-in. to a maximum of 1-¼-in. Also the maximum nosing radius cannot exceed 9/16 of an inch.
What is the standard tread width for stairs?
Generally, the stair tread should be 11 inches minimum, the riser height is specified between 4 and 7 inches, and the width should be at least 48 inches, excluding handrails. The width allows for a wheelchair user to be safely carried down in the event of an emergency.
What is the minimum width of stairs for a residential building?
Minimum width of stairs for single family house should be 75 cm and if the number of users is more than 10, minimum width of stairs should be 95 cm whereas minimum width of stairs for two or more family houses should be 100 cm and if the number of users is more than 10, minimum width of stairs should be 125 cm.
