What is the maximum angle of attack for a commercial jet aircraft?

Planes slowly angle up during take off at about 2-3 degrees per second for a Boeing 747. A bit of quick math and using the same Boeing 747 as an example, the average passenger plane has a maximum take off angle of about 10-15 degrees. That’s well within the plane’s tolerances of course.

What is the angle of attack in aviation?

The angle of attack (AOA) is the angle at which the chord of an aircraft’s wing meets the relative wind. The chord is a straight line from the leading edge to the trailing edge. The critical AOA is an aerodynamic constant for a given airfoil in a given configuration.

What happens if you exceed the critical angle of attack in flight?

When the wing exceeds the critical angle of attack, the airflow separates from the top surface and the resulting turbulence reduces lift and increases drag (bottom). An airplane’s wing can stall at any airspeed and any attitude. You can stall an airplane in a descent at a higher airspeed.

Can an aircraft stall at any angle of attack?

A fixed-wing aircraft can be made to stall in any pitch attitude or bank angle or at any airspeed but deliberate stalling is commonly practiced by reducing the speed to the unaccelerated stall speed, at a safe altitude.

What is high angle of attack?

Description. An increase in angle of attack results in an increase in both lift and induced drag, up to a point. Too high an angle of attack (usually around 17 degrees) and the airflow across the upper surface of the aerofoil becomes detached, resulting in a loss of lift, otherwise known as a Stall.

What is effective angle of attack?

[ə¦fek·tiv ‚aŋ·gəl əv ə′tak] (aerospace engineering) That part of a given angle of attack that lies between the chord of an airfoil and a line representing the resultant velocity of the disturbed airflow.

What is the optimal angle of attack?

Physics shows the optimum launch angle depends on ball speed. At ball speeds typical of most amateur players, the optimum launch angle is roughly 15 degrees. Because of their higher ball speed, PGA Tour players average launch angle is just over 11 degrees.

What is critical angle of attack?

The critical angle of attack is the angle of attack which produces the maximum lift coefficient. This is also called the “stall angle of attack”. A fixed-wing aircraft by definition is stalled at or above the critical angle of attack rather than at or below a particular airspeed.

Does speed affect angle of attack?

An increase in speed or the angle of attack will increase both lift and drag. In level flight, lift must equal the weight of the aircraft. The speed and angle of attack are interchangeable to a point—therefore, for every airspeed, there is a corresponding angle of attack that will produce the same amount of lift.

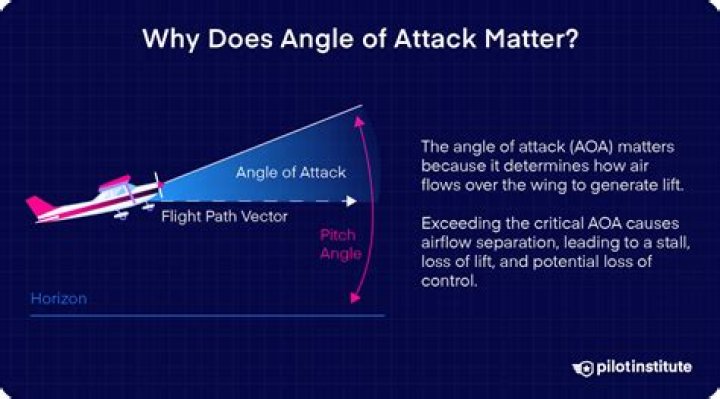

What is pitch angle and angle of attack?

Angle of attack (AOA) is the angle between the oncoming air or relative wind and a reference line on the airplane or wing. Pitch angle (attitude) is the angle between the longitudinal axis (where the airplane is pointed) and the horizon.

What is negative angle of attack?

When a wing is at a low but positive angle of attack, most of the lift is due to the wing’s negative pressure (upper surface) and downwash. (Negative pressure is any pressure less than atmospheric, and positive pressure is pressure greater than atmospheric.)

How is the angle of attack measured?

Angle of attack in an aircraft is usually measured using a free movement vane that is attached to the aircraft on the fuselage or on a boom mounted on the wing. The vane aligns itself with the airflow and the sensing mechanism inside the vane drives an indicator for the pilot which tells him the AOA of the aircraft.
