What is the efficiency of a brushless DC motor?

Brushless motor efficiency is very high in comparison to any combustion engine with values averaging between 70% and 90%.

How is brushless motor efficiency calculated?

Brushless motor calculation

Imax= sqrt(V Io/Rm) Torque at max efficiency:
Ip= (V + Rm Io)/(2 Rm) Torque at max power output.
MOTOR MAXIMUM EFFICIENCY: (Better mechanical output to electrical work ratio) η max= [1- Sqrt ( Io Rm / V )²]
USING THIS EQUATIONS:

What is the efficiency range of DC motor?

The value of the efficiency of a DC motor could typically be in the range of 70 to 85%. Larger the machine higher will be the efficiency. Losses consist of Armature and field copper losses, core loss, friction and windage loss.

Are BLDC motors more efficient?

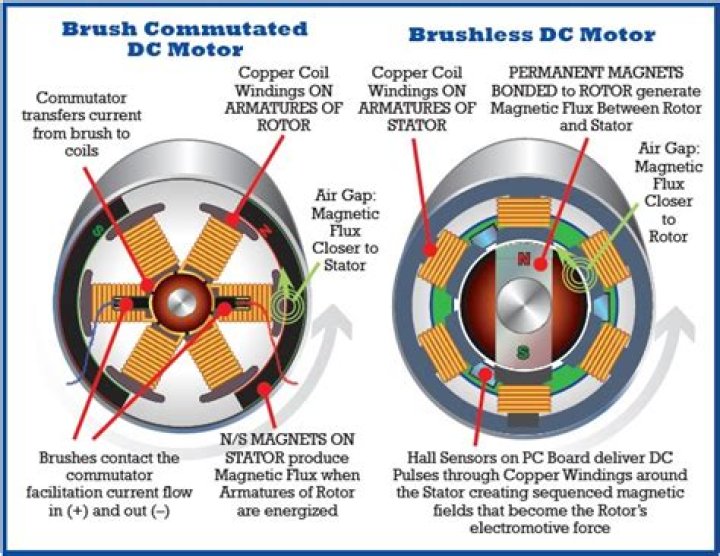

Efficiency. At the same time, BLDC motors are considered more energy efficient than brushed DC-motors. This means for the same input power, a BLDC motor will convert more electrical power into mechanical power than a brushed motor, mostly due to absence of friction of brushes.

How can you increase the efficiency of a DC motor?

To achieve maximum motor efficiency, experts from the Department of Energy (DOE) Industrial Technologies Program, Washington, D.C., recommend the following:

Eliminate voltage unbalance.
Replace V-belts with cogged or synchronous belt drives.
Avoid nuisance tripping.
Maintain motor shaft alignment.

Do brushless motors use less power?

When converting electricity into mechanical power, brushless motors are more efficient than brushed motors primarily due to the absence of brushes, which reduces mechanical energy loss due to friction. The enhanced efficiency is greatest in the no-load and low-load regions of the motor’s performance curve.

How do you calculate the efficiency of a DC motor?

The overall efficiency of a DC motor can be found in a similar manner to that of a DC generator, that is: power input = power output + losses.

Can we build a DC motor with 100% efficiency?

No, it is impossible; it comes from the energy conservation law. It stems from this law, that it is impossible to produce more energy than You put in the imput for any device and by any physical proccess.

Which is more efficient AC or DC motor?

AC motors are generally considered to be more powerful than DC motors because they can generate higher torque by using a more powerful current. However, DC motors are typically more efficient and make better use of their input energy.

What affects the efficiency of a DC motor?

Motor performance depends on three elements such as voltage across terminals, resistance across terminals, and magnetic force.

Why bigger motors are generally more efficient than smaller motors?

To maintain same flux density as in a larger motor, larger number of turns is needed. Current is lesser in a smaller motor, so conductor area is smaller but can have the same current density in an ideal motor. Thus, the resistance is larger, but I2r loss will be almost same percentage as in an ideal larger motor.

Should a brushless motor spin freely?

A brushless motor should spin freely when all the wires are separated as there is not a complete circuit. If the motor resists your rotation regardless of the wire connections, it’s likely that your motor has an internal short circuit.

What is the efficiency of a DC motor?

Efficiency of the motor is not a number, it is a graph. It could be anything from 0 to maximum efficiency. Usually maximum efficiency is what manufacturers specify for their motors at optimal speed. Small DC motors usually have maximum efficiency of 50-60%.

Are Tesla motors brushless?

As the link to the Tesla article states, DC brushless motors and AC induction motors are not the same. The DC brushless motor requires rare earth metals ( strontium , neodymium , etc.) to make the permanent magnet for the rotor. An AC induction motor does not use any permanent magnets.

What is the efficiency of a BLDC motor?

The efficiency of BLDC motors is typically 85 to 90 percent , whereas as brushed type DC motors are 75 to 80 percent efficient. There are wide varieties of BLDC motors available ranging from small power range to fractional horsepower, integral horsepower and large power ranges. BLDC motors can be constructed in different physical configurations.

What is a brushed DC electric motor?

A brushed DC motor is an internally commutated electric motor designed to be run from a direct current power source.
